Built under the theme “HD Meets Creativity,” the Unilumin UGN II series is a precision 500×500 mm indoor rental LED video wall supporting fine and standard rental pixel pitches (P1.5 / P1.8 / P1.9 / P2.6 / P3.91), 16-bit grayscale, and a 3,840 Hz broadcast-grade refresh rate.
16-BitHigh Grayscale Depth
3,840 HzFlicker-Free Camera Refresh
45° CurveSingle-Cabinet UGN II-S Arc
Front & RearDual-Access Serviceability
1. Detachable Lock Architecture & Creative Splicing
- Detachable Up-Down & Left-Right Locks: Quick-release lock assemblies allow crews to reconfigure cabinet models without altering the underlying die-cast frame structure.
- UGN II-S & UGN II-C Ecosystem: Straight UGN II cabinets interlock directly with curved UGN II-S panels (up to 45° concave/convex in a single cabinet) and UGN II-C 90° corner cabinets (note: corner cabinets are designed for ground-stack/fixed mounting rather than overhead hanging).
- Automatic Calibration Memory: Replacing an indoor module triggers automatic calibration data sync so brightness and color temperature stay uniform across the wall.
2. Typical UGN II Indoor Rental Specifications
| Parameter | UGN II Indoor Series Specification |
|---|---|
| Available Pixel Pitches | P1.5 / P1.8 / P1.9 / P2.6 / P3.91 (Stellux stocks P3.91 indoor batches) |

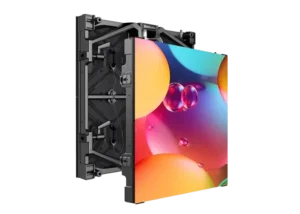

| Cabinet Size | 500 × 500 mm precision die-cast cabinet |
| Grayscale & Refresh Rate | 16-bit grayscale · 3,840 Hz refresh rate |
| Control System Compatibility | NovaStar A5s Plus receiving card (supported by NovaLCT & SmartLCT) |
| Maintenance Access | Full front and rear serviceability with comprehensive lamp-face edge protection |
Inspect Refurbished Unilumin UGN II Stock on Stellux
View our batch-matched Unilumin UGN II P3.91 indoor rental listing with NovaStar A5s Plus cards:
